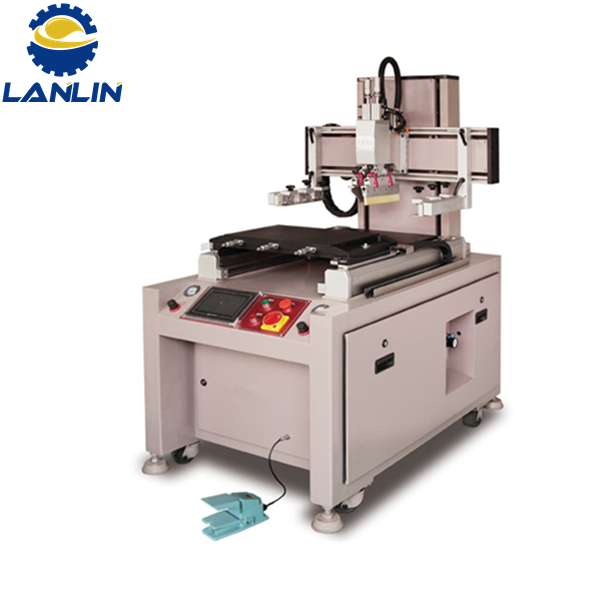

Screen Printing Machine Special For High Precision Double Work Table Glass Cover Plate

  • Min.Order Quantity: 1 set
  • Supply Ability: 10 per Month
  • Port: Shenzhen
  • Payment Terms: T/T, L/C, Western Union
  • Product Detail

    Product Tags

    Screen Printing Machine Special For High Precision Double Work Table Glass Cover Plate



    Applications:

    Precision Electronics,TFT LCD,Touch Panel,ITO,Conductive Coating Glass,EL, LGP Panel,Diffusion Sheet,

    CNT-FED、PDP)、LCD TV Anti Reflective Glass,FFL,Mercury Free Flat Back Light Glass、RFID,etc.



    Features:

    Innovative design: Innovation on the screen down, driven by servo motor, ball screw lifting drive, linear guide with high precision, fast steady impact, high repeat precision.

    Strong precision: innovative structure, strong light, top drive and guide system.

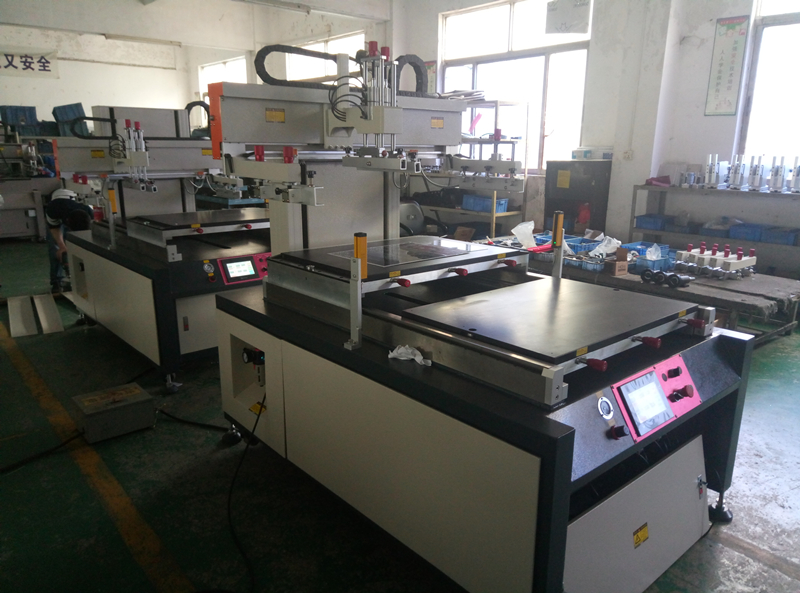

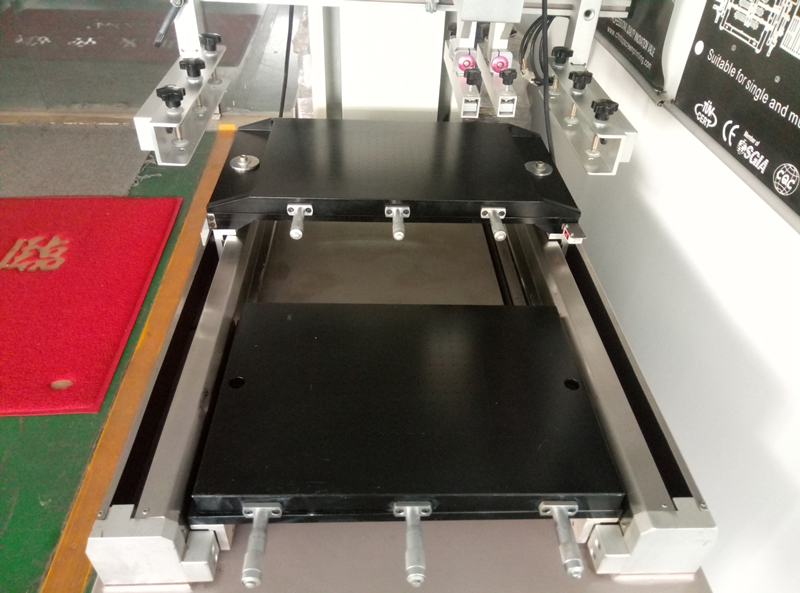

    Industry unique design: before and after the double work table alternating movement, printing and up and down material at the same time, the efficiency is higher. Servo system used in printing, high speed no impact, low speed no crawl.

    The new printing head: double guide rails to lift, adjust the convenient, accurate and durable operation.

    Convenient operation: PLC and man-machine interface control, pneumatic and electric control system of complete distribution, multiple functions, convenient operation.

    Safety protection: the new idea of humanized operation design, the whole machine is equipped with safety protection device, to ensure personal safety.



    Specifications:

    Model LL-CP5070BS LL-C4060BS LL-CP2530BS
    Max Printing Area(mm) 500*700 400*600 250*300
    Table area(mm) 600*800 750*520 300*500
    Max Frame Size(mm) 760*1100 640*1000 450*650
    Printing Precision(mm) ±0.02 ±0.02 ±0.02
    Printing Thickness(mm) ≤15 ≤15 ≤30mm
    Air Suction Size (mm) 480*680 380*580 250*300
    High Printing Speed 750/H 850/H 900/H
    Printing Pressure kgf/c㎡ 4~.6 4~.6 0.4~0.6
    Power(V)/ (KW) 220/3.5 220/3.5 220/1.8
    Weight(KG) 500 500 500
    Dimension LxWxH(mm) 1750*1260*1650 1650*1160*1650 1250*800*1550
    Table Height (mm) 920±10 920±10 900/H
