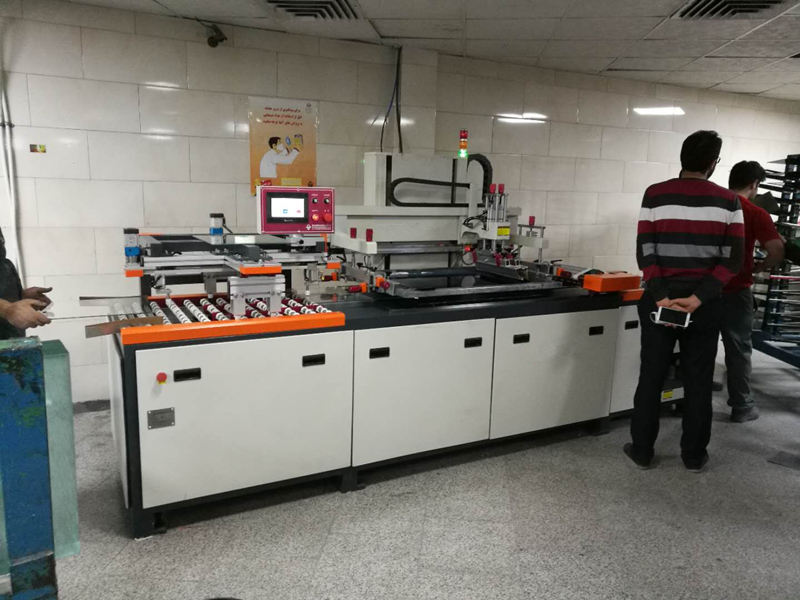

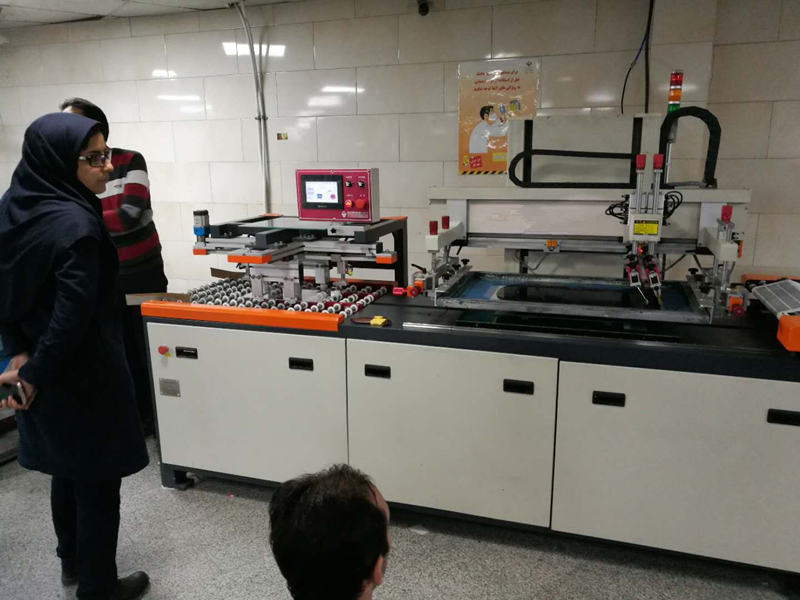

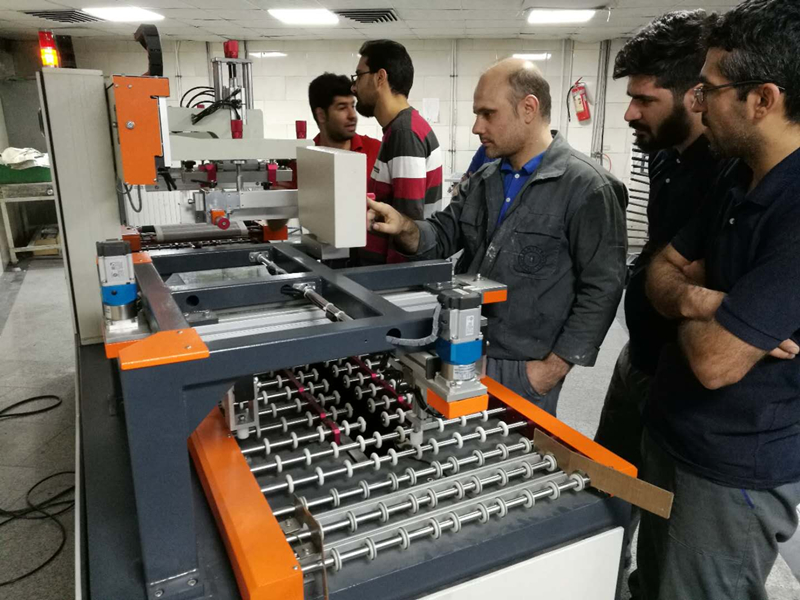

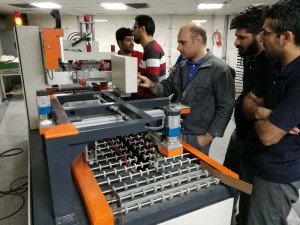

Automatic Glass Screen Printing Line

  • Min.Order Quantity: 1 set
  • Supply Ability: 10 per Month
  • Port: Shenzhen
  • Payment Terms: T/T, L/C, Western Union
  • Product Detail

    Product Tags

    Automatic Glass Screen Printing Line



    Application Scope:

    Suitable for automobile side window glass, refrigerator glass, color glass, decorative glass, household appliances glass and other small and medium sized flat glass monochrome and color printing.

     Household appliance screen printing machine

    tv glass screen printing

    Features:

    ◆Electric vertical take-off and landing, non-slip lifting conveyor belt, fast and stable.

    ◆ Pneumatic off-grid system,make lift version of the speed, height can be adjusted.

    ◆Printing using linear guide variable frequency synchronous speed adjustment, combined with photoelectric switch control positioning, fast, precise positioning.

    ◆ With automatic feed, back feed function, can be connected to the drying line, ensure quality and improve production.

    ◆ Compact aluminum die casting, precision cylinder combinations Hard guide slider guide plate has a lift device, easy to replace and wash screen version.

    ◆ The angle of scraping and cover ink blade can be adjusted,

    ◆Mechanical arm mounting cylinder pneumatic off the net, effectively prevent the large area of printing products and printing paste version of the paste version, to ensure product quality.



    Technical parameters:

    Model

    LL- GL6090ST

    LL- GL8015ST

    Max printing area

    600*900mm

    800*1500mm

    Min printing area

    300*400mm

    400*400mm

    Max frame size

    900*1400mm

    920*1800mm

    Table multi-color printing precision

    ±0.15mm

    1100*1980mm

    Thickness of printed matter

    3.0~8.0mm

    2.0~19mm

    Printing speed

    480-600 pcs/h

    Around 400 pcs/h

    Conveying height

    900mm+20mm

    900mm+20mm

    Suitable power supply

    T380V,50Hz

    T380V,50Hz

    Power consumption

    6.5Kw

    7Kw

    Air pressure

    0.6MPa

    40L/min @ 6kgf/c㎡

    Machine weight

    About 1800Kg

    About 2000Kg

    Machine size ( L*W*H )

    4830*1260*1800

    6550*1620*1780
