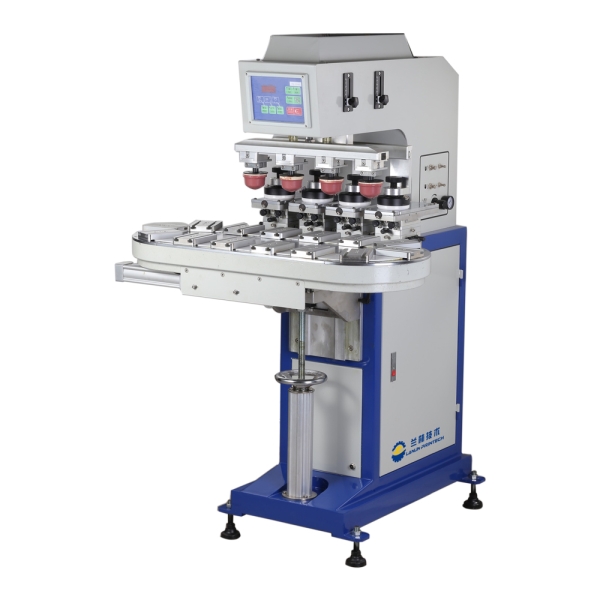

Four Color Pad Printing Machine

  • Min.Order Quantity: 1 set
  • Warranty: 1 year
  • Port: Shenzhen
  • Product Detail

    Product Tags

    Four Color Pad Printing Machine

    Applications:

    Pad printer is widely applied in many industries including toys, plastic, electronic, glass, metal, electrical appliances, ceramics, die-casting products, optical, sporting goods, stationery, etc.

    For example, rulers, pens, golf balls, ping-pong, eyes of doll, cap of bottle, watches, cameras, ceramic, pharmaceutical and medical equipment, rackets, tapes, electronic components, IC, CPU, DRAM, keyboard, mouse, cell phone shell, decorative signs, etc.

    IMG_5455_副本

    IMG_5475_副本

    Features:

     Microprocessor operation system, electro-pneumatic control, simple operation using touch panel.

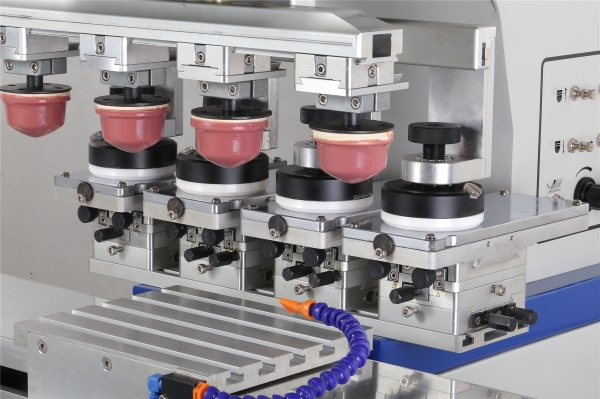

     160mm-200mm working stroke, ink cup and ink basin design.

     Programmable up and down, forward and rear stroke.

     X, Y, R steel plate adjustment, worktable X/Y/Z/R adjustment.

     Heavy-duty construction with cabinet.

     Stable, durable working and fine workmanship.

     Foot pedal operation for single cycle.

     Using SMC/FESTO pneumatic components.

     Installed safety guard and emergency stop button (optional).

     PLC and touch screen display, servo motor shuttle are optional.

     Complying with CE safety standards.

    Specifications:

    Model

    LP-160B-

    4S

    LP-160C-

    4S

    LP-160B-

    4R

    LP-160C-

    4R

    LP-200B-

    4S

    LP-200C-

    4S

    LP-200B-

    4R

    LP-200C-

    4R

    Ink system

    Ink basin

    Ink cup

    Ink basin

    Ink cup

    Ink basin

    Ink cup

    Ink basin

    Ink cup

    Plate size(mm)

    150*100

    250*100

    150*100

    250*100

    200*100

    300*100

    200*100

    300*100

    Ink cup size(mm)

    ID82*OD90

    ID82*OD90

    ID82*OD90

    ID82*OD90

    Working table

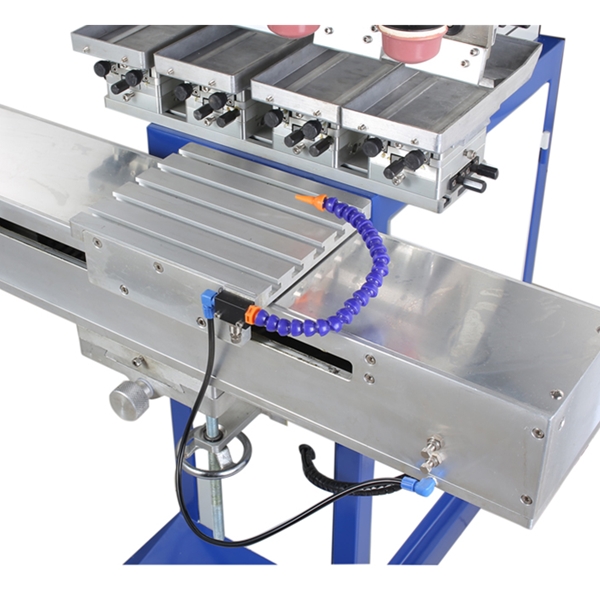

    Shuttle

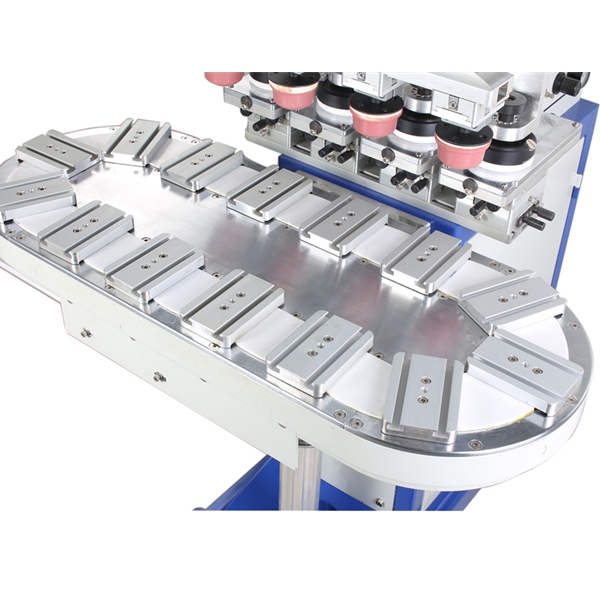

    Rotary table

    Shuttle

    Rotary table

    Max. print speed

    1000 Pieces/hour

    1200 Pieces/hour

    900 Pieces/hour

    1200 Pieces/hour

    Driven

    Pneumatic

    Pneumatic

    Pneumatic

    Pneumatic

    Air pressure

    5-6 bar

    5-6 bar

    5-6 bar

    5-6 bar

    Control system

    12V PCB board or PLC with touch screen

    12V PCB board or PLC with touch screen

    12V PCB board or PLC with touch screen

    12V PCB board or PLC with touch screen

    Voltage

    110/220/230V

    50/60HZ

    110/220/230V

    50/60HZ

    110/220/230V

    50/60HZ

    110/220/230V

    50/60HZ

    Weight(kg)

    135

    135

    145

    145

    250

    250

    280

    280

    Machine dimension(L*W*H mm)

    1020*780*1430

    950*1000*1450

    1050*900*1450

    1100*1050*1450
