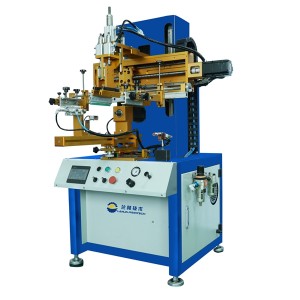

LP-S2A/3A/4A/5A Semi Automatic Bottle Container Tube Jar Silk Screen Printing Machine

  • Min.Order Quantity: 1 set
  • Warranty: 1 year
  • Port: Shenzhen
  • Delivery time: 5 days
  • Product Detail

    Product Tags


    The semi-automatic bottle and container screen printer is a well designed and versatile machine.

    This machine can screen print on flat and cylindrical objects such as blow molded bottles, cosmetic tubes, aluminum water bottles, drum sticks, glass pipettes, etc.

    It also can print logo, image on flat objects. The material can be plastic, glass, leather, paper, wooden sheet, etc.


    glass printing samples semi auto machine

    Power bank


    This machine features quick & simple tooling changeovers, precise mechanical registration & conveniently all controls are on the front panel.

    •Electro-pneumatic controlled

    •Programmable set-up

    •Pneumatic controlled with shock absorbers

    •Vertical head lift with up/down lock

    •Linear ball bearings on hardened shafts

    •Foot switch controlled

    •Squeegee tilt, skew, and height adjustments

    •Screen frame angle adjustment

    •Universal fixture bar for mounting custom tooling

    •Bottle inflation system with regulator

    •Bottle inflation is synchronized with print cycle

    •Regulated squeegee pressure with pressure gauge

    •Floor levelers & casters


    Technical Data





    Drive System:





    Frame Up/Down Stroke:





    Maximum Print Area Round:
    Maximum Print Area Oval:
    Maximum Print Area Flat:

    Ø 75mm
    230mm Arc Length
    150 x 220mm

    Ø 110mm
    340mm Ar`c Length
    200 x 320mm

    Ø 200mm
    620mm Arc Length
    200 x 630mm

    Ø 350mm

    1090mm Arc Length

    Can not for flat printing

    Maximum Screen Frame Size:

    280 x 430mm

    380 x 580mm

    400 x 800mm

    450 x 1350mm

    Printing Cycle Speed:

    1980 cycles/hr

    1200 cycles/hr

    960 cycles/hr

    780 cycles/hour

    Squeegee Pressure:

    4 – 6 Bar

    4 – 6 Bar

    4 – 6 Bar

    4 – 6 Bar

    Electric Source:

    110V/220V 50-60Hz

    110V/220V 50-60Hz

    110V/220V 50-60Hz

    110V/220V 50-60Hz

    Air Consumption:

    0.7 L/cycle

    0.7 L/cycle

    0.7 L/cycle

    0.7 L/cycle

    Machine Weight:

    135 kg

    150 kg

    170 kg

    277 kg

    Machine Weight (including crating):

    185 kg


    260 kg

    407 kg

    Dimensions (L x W x H):

    830 x 750 x 1270mm

    1310 x 1010 x 1315mm

    1130 x 750 x 1350mm

    1650 x 1320 x 1400mm

    Crate Dimensions:

    980 x 870 x 1410mm

    1400 x 1050 x 1430mm

    1250 x 940 x 1460mm

    1800 x 1520 x 1550mm
