Heat Transfer Machine For The Decoration Of Conical Part

  • Min.Order Quantity: 1 set
  • Warranty: 1 year
  • Port: Shenzhen
  • Product Detail

    Product Tags

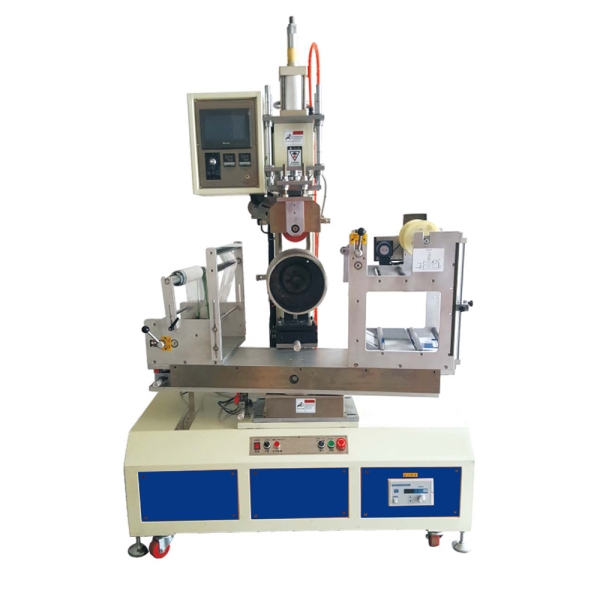

    Heat Transfer Machine For The Decoration Of Conical Part

    Applications:

    It is used for big water barrel, paint container, oil buckets.

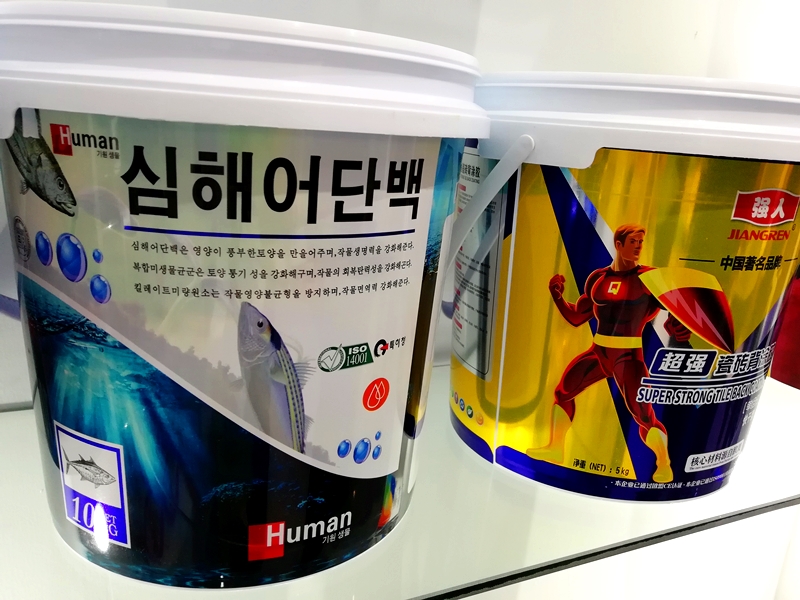

    Barrel heat transfer

    Features:

    1. 3 specification needed only. Height, conicity, diameter of container are put inside PLC, then machine can automatically run.

    2. Suitable for surface printing of various taper paint bucket, conical barrel, etc..

    3. Intelligent electric control system. Capable of storing multi-group operation parameters and making calls at any time. Touch screen display, simple operation and easy to understand.

    4. Full servo control. The running of the machine and movement of the jig are controlled by the servo motor, which guarantees the stability of the whole swing motion and effectively solves the problem of wrinkles.

    5. Taiwan HIWIN guide rail, Taiwan TBI ball screw, ensure the stability and precision of operation.

    6. The barrel body printing position has the automatic positioning function, using the OMRON fiber sensor structure.

    7. Using the magnetic powder structure to control the film loading tension, the CNC motor control the film winding, increase the film tension and the stability of the motion, and increase the positioning accuracy.

    Specifications:

    Model

    Voltage

    Power

    Stamping pressure

    Barrel diameter

    Stamping area height

    Size of barrel

    LP-HT200

    220V

    5kw

    300kg

    80-200mm

    ≤ 200mm

    1-10 L

    LP-HT300

    220V

    6kw

    300kg

    200-350mm

    ≤ 300mm

    10-22 L
