LP-HT6090 Heat Transfer Machine For Decoration Of Flat Part

  • Min.Order Quantity: 1 set
  • Warranty: 1 year
  • Port: Shenzhen
  • Product Detail

    Product Tags

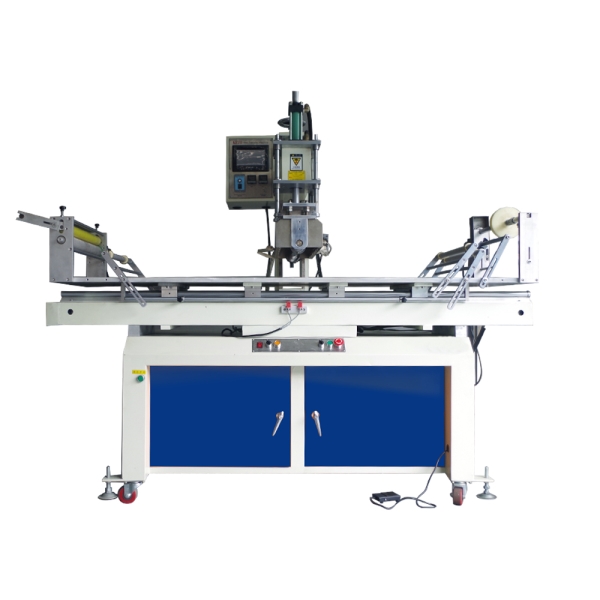

    LP-HT6090 Heat Transfer Machine For Decoration Of Flat Part

    Applications:

    This machine is for the printing of heat transfer process on those part with flat surface.

    Heat  transfer

    Heat transfer

    Features:

    1. Intelligent electric control system. Capable of storing multi-group operation parameters and making calls at any time. Touch screen display, simple operation and easy to understand.

    2. Taiwan HIWIN guide rail, Taiwan TBI ball screw, ensure the stability and precision of operation.

    3. Taiwan motor and sensor.

    4. Hydraulic control to achieve high stamping pressure.

    5. Auto slide working table optional.

    Specifications:

    Model LP-HT6090
    Printing area 600*900mm
    Stamping speed 600 pieces per hour
    Stamping temperature range ≤250 ℃
    Stamping pressure range ≤2 ton
    Power 380V, 50/60HZ, 5.5KW
    Dimension L1800*W850*H1900mm
    Weight 800KG
