    Servo Motor Controlled Pad Printing Machine

    Introduction:

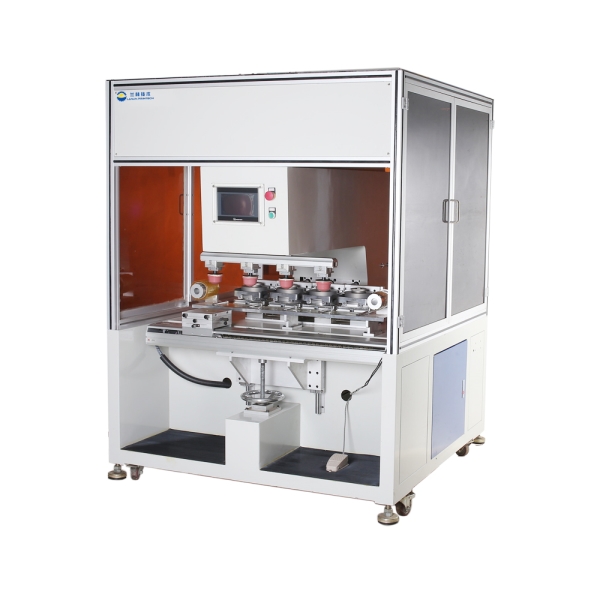

    LP-400C-4S servo motor controlled pad printing machine is equipped with servo motor to drive fron/back, up/down stroke and part shuttle to print 1-4 colors.

    It features a programmable touch screen control panel and all functions can be easily programmed from there.

    It comes with a solid built welded steel machine base to ensure smooth and quite performance without vibration.

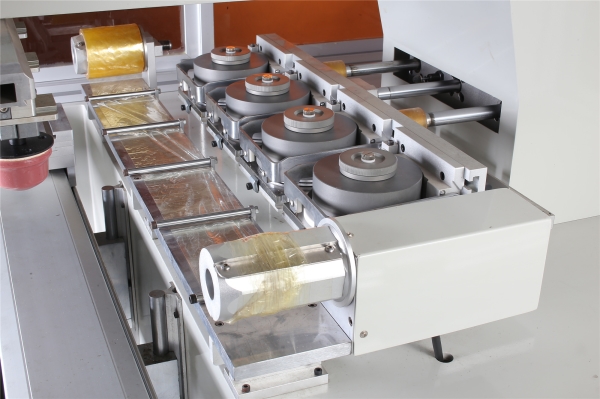

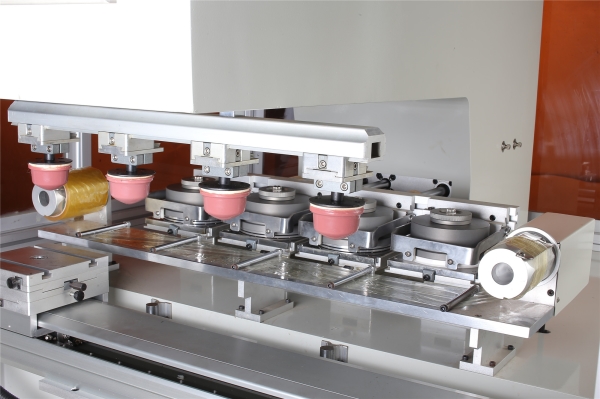

    It is equipped with four adjustable cliches and ink cups. The ink cup size can be 90mm or 140mm, and with four individual X/Y/R adjustable clich holders for precise alignment of artworks

    Features:

     PLC and touch screen display controls all the movements.

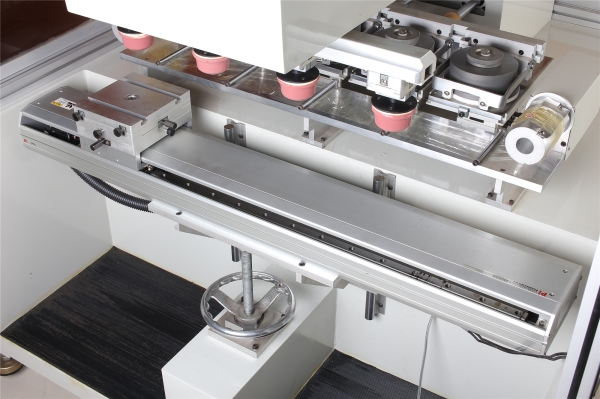

     Programmable servo motor driven shuttle for extreme accuracy.

     Servo motor driven front to back stroke for programmable working stroke.

     Programmable print stroke driven by servo motor.

     Automatic tape pad cleaning device.

     Changeable plate size and ink cup size.

    Specifications:



    Model

    LP-400C-4S

    Control system

    PLC with touch screen

    Front/back stroke driven

    Servo motor

    Up/down stroke driven

    Servo motor

    Part shuttle driven

    Servo motor

    Ink system

    Ink cup

    Plate size(mm)

    250*100 or 350*150

    Ink cup size(mm)

    ID90*OD100 or ID140*OD150

    Working table

    Shuttle

    Max. print speed

    800 Pieces/hour

    Air pressure

    5-6 bar

    Voltage

    110/220/230V 50/60HZ

    Weight(kg)

    520

    Machine dimension(L*W*H mm)

    1340*1350*1800
