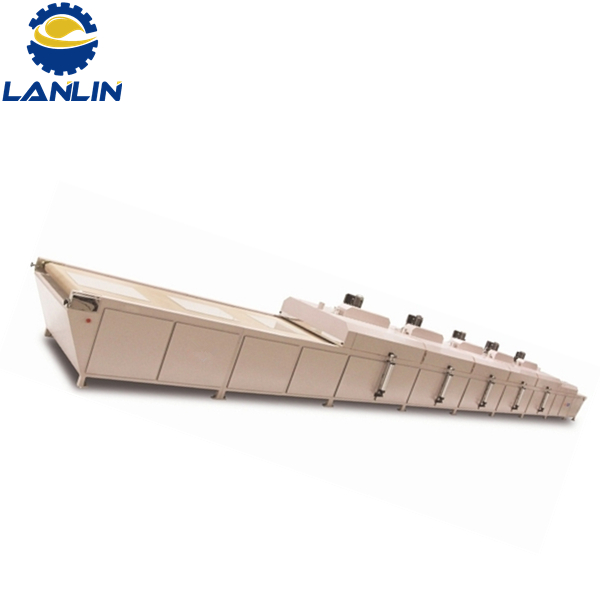

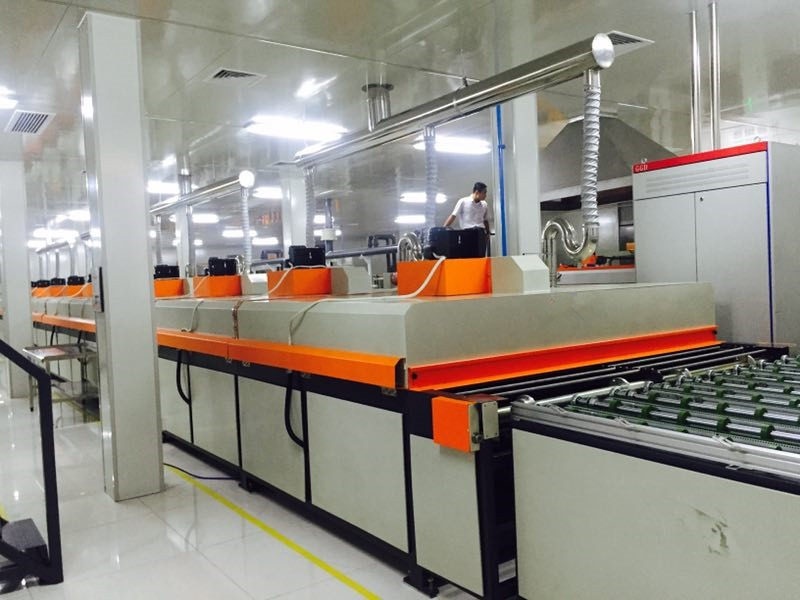

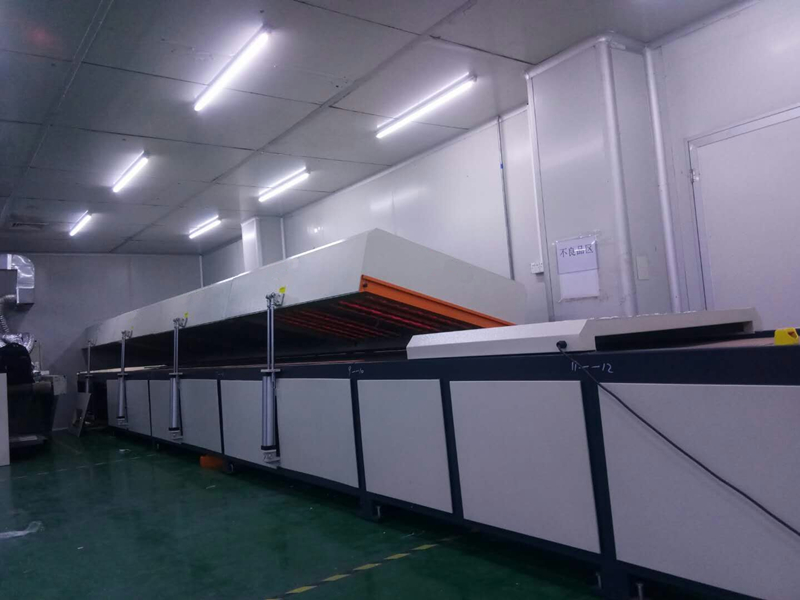

    Scheme of IR Dryer for Glass Screen Printing Machine



    Applications:

    The glass dryer is used for drying and cooling the glass after screen printing. Machine composed with drying part and cooling part and unloading part. Temperature adjustment range: room temperature -180 ° C



    Features:

    Adopt standard material for the machine body, and stainless steel for the inner reflector.

    Adopt imported gear motor for transportation. The glass is transported by the Teflon Roller. And the transportation speed is adjustable steplessly.

    There are high quality plastic rubber ring which with solvent resistance and high temperature resistance features.

    Adopt hot air convective circulation system.

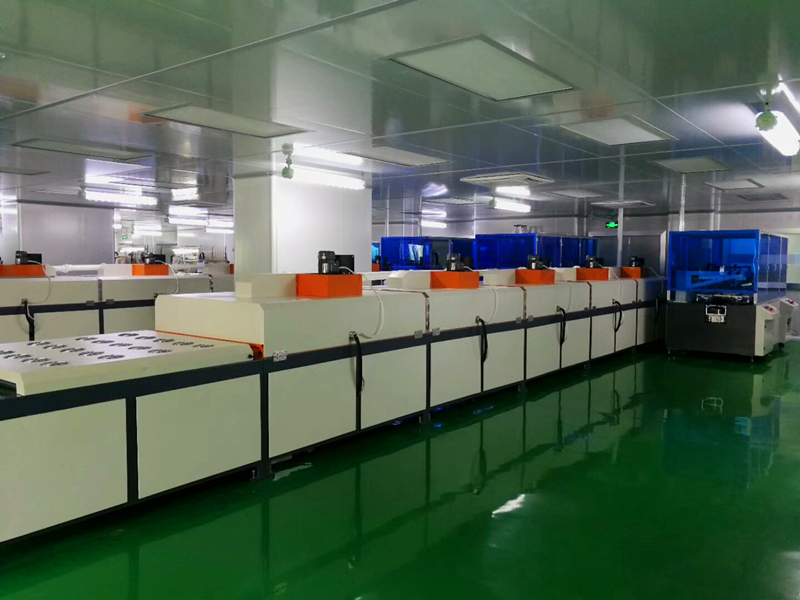

    There are four sections of the dryer:

    First section: Loading section, Used to unload the glass after screen printing and to transit the glass into drying section.

    Second section: Drying section. There are four hot air drying sections. Adopt the high temperature motor to recycle the hot air from IR lamp. Make sure balanced heating on the glass. The temperature will be showed on the display. All four sections temperature can be controlled separately. There are exhaust opening on the two sides of the heating section.

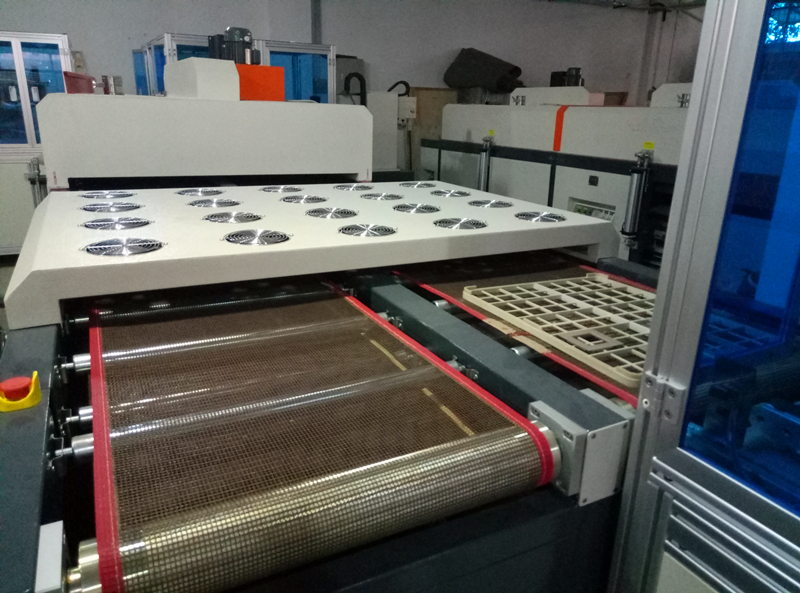

    Third Section: Cooling section. Adopt motors to below the airs to both sides of the glass to realize the cooling function. The temperature can be cooled under 700C. Inside cooling sections, there are air filter system, and exhaust system, ensure balance between the air and exhausted air.

    Fourth Section: unloading section. Used to unload the glass after cooling. This section with up/down rack, on the racks, there are all-directions wheels and side roller to unload the glass. The foot switch is used to control the rack moving up and down.

    Cylinders used to lift up the cover of the dryer. It’s easy for after service and maintenance.

    Adopt high quality ceramic fiber insulation board for heating insulation. Increase heating efficiency.



    Specifications:

    Model

    LL-IR1016GL

    LL-IR1216GL

    LL-IR1516GL

    Width of dryer tunnel

    1300mm

    1500mm

    1800mm

    Feeding width

    1000mm

    1200mm

    1500mm

    Length of drying tunnel

    16000mm

    16000mm

    16000mm

    Feeding speed

    2-6m/min

    2-6m/min

    2-6m/min

    Adjusting range of temperature

    Room temperature to 180℃

    Room temperature to 180℃

    Room temperature to 180℃

    Power of infrared radiation tube

    46.8 KW (1.3KW X 9pcsX 4 Sections)

    54. KW (1.5KW X 9pcsX 4 Sections)

    96.0KW(2.0KW X 12pcsX 4 Sections)

    Motor power

    1.5KW X 1pcs

    1.5KW

    1.5KW X 1pcs

    Total power

    Around 58KW, 380V, 50HZ

    62 KW, 380V, 50HZ

    121KW, 380V, 50HZ

    Air consumption

    10L/Min, 6kg/c㎡

    10L/Min, 6kg/c㎡

    10L/min; 6kg/c㎡

    Mechanical dimension

    16000×1300× 1600mm

    16000×1500× 1600mm

    16000×1800× 1600mm

    Working Height

    900mm+20mm

    900mm

    1800mm

    Model

    LL-IR1916GL

    LL-IR2016GL

    LL-IR2518GL

    Width of dryer tunnel

    2200mm

    2300mm

    2900mm

    Feeding width

    1900mm

    2000mm

    2500mm

    Length of drying tunnel

    16000mm

    16000mm

    18000mm

    Feeding speed

    2-6m/min

    2-6m/min

    2-6m/min

    Adjusting range of temperature

    Room temperature to 180℃

    Room temperature to 180℃

    Room temperature to 180℃

    Power of infrared radiation tube

    90.0KW(2.5KW X 9pcsX 4 Sections)

    93.6KW(2.6KW X 9pcsX 4 Sections)

    129.6KW(5.4KW X 6pcsX 4 Sections)

    Motor power

    1.5KW X 1pcs

    1.5KW X 1pcs

    1.5KW

    Total power

    105KW, 380V, 50HZ

    108KW, 380V, 50HZ

    150KW, 380V, 50HZ

    Air consumption

    6kg/c㎡

    40L/Min, 6kg/c㎡

    40L/min, 6kg/c㎡

    Mechanical dimension

    16000×2200× 1600mm

    900+20mm

    18000×2900× 1550mm

    Working Height

    2200mm

    16000×2300× 1600mm

    2900mm

    Model

    LL-IR3018GL

    LL-IR6015GL

    LL-IR8016GL

    Width of dryer tunnel

    3400mm

    900mm

    1100mm

    Feeding width

    3000mm

    600mm

    800mm

    Length of drying tunnel

    18000mm

    15000mm

    16000mm

    Feeding speed

    2-6m/min

    2-6m/min

    2-6m/min

    Adjusting range of temperature

    Room temperature to 180℃

    Room temperature to 180℃

    Room temperature to 180℃

    Power of infrared radiation tube

    144KW(6KW X 6pcsX 4 Sections)

    28.8 KW (0.8KW X 9pcsX 4 Sections)

    43.2 KW (1.2KW X 9pcsX 4 Sections)

    Motor power

    1.5KW X 1pcs

    1.5KW X 1pcs

    1.5KW X 1pcs

    Total power

    140KW, 380V, 50HZ

    38KW, 380V, 50HZ

    54KW, 380V, 50HZ

    Air consumption

    40L/Min, 6kg/c㎡

    10L/Min, 6kg/c㎡

    10L/Min, 6kg/c㎡

    Mechanical dimension

    900+20mm

    15000×900× 1600mm

    16000×1100× 1600mm

    Working Height

    18000×3400× 1600mm

    900mm

    900mm+20mm
