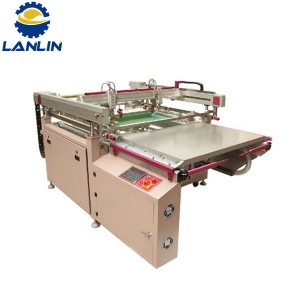

Four-Post Semi-automatic Screen Printing Machine

  • Min.Order Quantity: 1 set
  • Supply Ability: 10 per Month
  • Port: Shenzhen
  • Payment Terms: T/T, L/C, Western Union
  • Product Detail

    Product Tags

    Four-Post Semi-automatic Screen Printing Machine



    Advantages:

    • Mitsubishi PLC control, HMI touch screen control panel, easy operation;

    图片2_副本

    •Equipped with TWO Panasonic servo motors, one driving print carriage, the other peel-off ;

    图片4_副本

    •Equipped with TWO SEW motors to control the frame up/down and print table in/out movement;

    图片5_副本

    •Print head and table motion on German Rexroth linear guide rail+ high quality timing belt, smooth and precision;

    图片1_副本

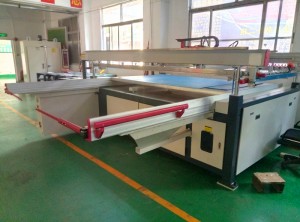

    • Reciprocating vacuum bed allows easy loading and take-off of substrate while keeping registration;

    图片3_副本

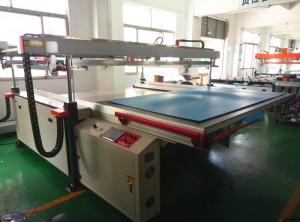

    • Aircraft-quality, 50mm thick, cast iron table provides the heaviest gauge plate in the industry;

    • Four-post, horizontal head lift accommodates substrates of up to 1″ thick;



    Standard Feature:

    • Front or Rear Carriage Stop Mode: A toggle switch on the main control panel stops the carriage in flood (solvent system) or non-flood (UV curable) mode

    • Master-frame: Accepts all frame types, including roller frames

    • Peel Rate Setting: Adjustable without tools; allows easy access and fine adjustments to the automatic peel system

    • Position Settings for Front and Rear Screen Holders: Requires no tools to set and can be positioned to accommodate smaller screens

    • Aircraft-quality cast iron table:

    2″ thick table with the heaviest gauge plate in the industry

    • Double Print Feature: Allows extra-heavy ink deposits when required

    • Variable Speed Take-Off: Adjusts speed to match conventional or UV dryer conveyors

    • Reciprocating Vacuum Bed: Allows for easy loading and take-off of substrate, while maintaining perfect registration

    • “0” Off-Contact: Easily accessible controls allow minimal off-contact settings to take advantage of high-performance, high-tension screens (at maximum frame size)

    • Three-Way Mode Selection: Allows operator to choose timer, jog or foot pedal mode

    Independent Squeegee & Flood-bar Speeds: Helps ensure excellent print quality control

    • Squeegee/Flood-bar Angle Adjustments: For absolute print control on challenging jobs

    • Independent Carriage Stroke & Head Lift Drive: Provides smooth, even print stroke

    • Four-Post Head Lift: Allows printing on material up to 1″ thick

    • Sliding Pneumatic & Manual Screen Clamps: Provide fast setup and changeover of different screen sizes

    • Extra “Head Room”: Head rises up to 18″ for easy screen cleaning with safety interlocks

    • Horizontal Lift System: Ensures even flooding for even ink deposits

    • Squeegee/Flood-bar Pressure Adjustment: Provides tool-free, easy access to micro-calibrated knobs

    • Super Micro-Registration: New bearing- actuated system provides precise registration with tolerances to +/-.002″

    • Squeegee Skew System: Improves ink distribution and uniformity through mesh



    Specifications:

    Model

    LL-CP70100SP-1

    LL-CP95155SP-1

    LL-CP1323SP-1

    Max. Print size (mm)

    700X1000mm

    950X1550mm

    1300X2300mm

    Print table size(mm)

    950X1250mm

    1200X1750mm

    1550X2550mm

    Max frame size (mm)

    1200X1400mm

    1450X1950mm

    1800X2700mm

    Table Precision (mm)

    ±0.05mm

    ±0.05mm

    ±0.05mm

    Printing Precision (mm)

    ±0.03mm

    ±0.03mm

    ±0.03mm

    Print thickness(mm)

    ≤30mm

    ≤30mm

    ≤30mm

    Max Print speed(P/H)

    500 pcs/Hour

    400 pcs/Hour

    350 pcs/Hour

    Air pressure (kgf/c㎡)

    4-6

    4-6

    4-6

    Power Supply(V/KW)

    380V 50/60Hz, 4.2KW

    380V 50/60Hz, 4.2KW

    380V 50/60Hz, 4.2KW

    Machine weight (kg)

    1400 kgs

    1700 kgs

    2500 kgs

    Machine size(L*B*H)(mm)

    1900*2735*1500

    2150*3285*1500

    2500*4035*1500
