Wholesale Price China Pneumatic Second Hand Printing Machine - LL-3220GS-16H High speed industrial uv printing machine – Lanlin Printech Detail:

LL-3220GS-16H High speed industrial uv printing machine

Introduction:

All steel under frame structure

Applied all steel under frame structure, greatly enhance stability of the machine while working. Processed with welding tempering treatment and aging treatment on square tube, make sure under frame and platform are not be deformed with time, highly extended printer lifespan and its accuracy.

Equipped print head height adjustment for media, it enables print head auto-adjust with media thickness under 100mm, deliver a smooth printing even with various media.

Anti-collision system for print head

Utilize with anti-collision system for print head, easier to adjust for different substrate, avoid any chance to damage print head under any misoperation.

Use double lead screw driving system, guarantee printing resolution and quality, longer printer lifespan.

Ceramic uv printing machine, Ceramic uv printing machine factory, Ceramic uv printing machine manufacturer, China Ceramic uv printing machine price.



Features:

All Steel Frame Structure

Applied all steel frame structure, better-structured frame made it more stable and keep high precision.

Media Thickness Auto-detect System
Equipped with media thickness auto-detect system, auto-adjust carriage height, deliver a supreme print quality.

User-friendly Touch Screen
Interactive operation with touch screen, Multi-Language available for global users.

Sectional Vacuum Platform
Sectional vacuuming platform, inlet volume control for different media makes printing easier and more efficient.

High Performance Lead Screw
Imported high speed mute screw, high-precision, low noise, wear proof and precise positioning.



Specifications:

Model Type LL-3220GS-16H High speed industrial uv printing machine
Print head type RICOH GEN5
Print head quantity 2-16
Printing platform Vacuuming platform
Media weight Max 100KG
Printing precision 360*600dpi,360*900dpi,720*1200dpi
Printing mode Uni-directional and BI-directional
Printing speed(16H) Draft mode: 118.7m²/h
Standard mode: 90.5m²/h
Quality mode:6 1.5m²/h
Print color C+M+Y+K+W, C+M+Y+K+Lc+Lm+W
RIP software ULTRA PRINT、RIP、photoprint、ONYX.
Color control ICC based color, curves and density adjustment function
File format Tiff,JPEG,EPS,PDF and more
Interface USB3.0
Printing size  Up to 3200X2000mm ±2mm
Printable media glass ,aluminum, plastic board, wood board, polystyrene board,leather, polyurethane, foam board, plastic sheet, metal sheet,textile, wallpaper, bricks, ceramic tiles and more.
Media thickness 1-80mm
Power specification AC220V±10%  50HZ>20A
Printer Dimension 5000X2800X1450mm
Operational environment Temperature: 20°C-32°C ;Humidity: 40-70 % RH

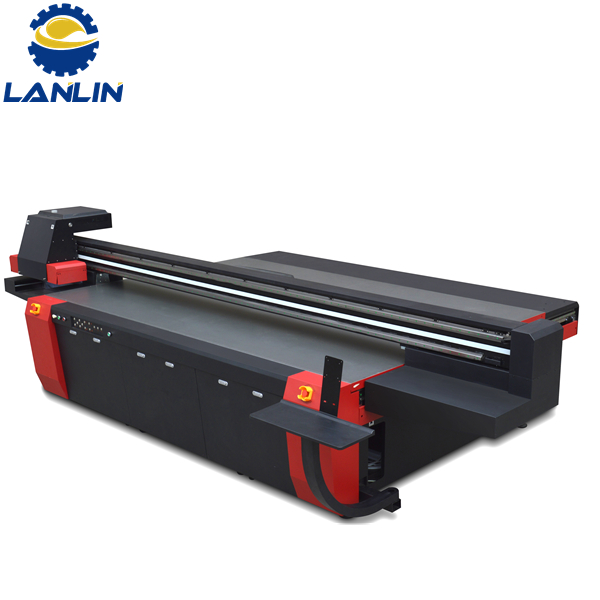

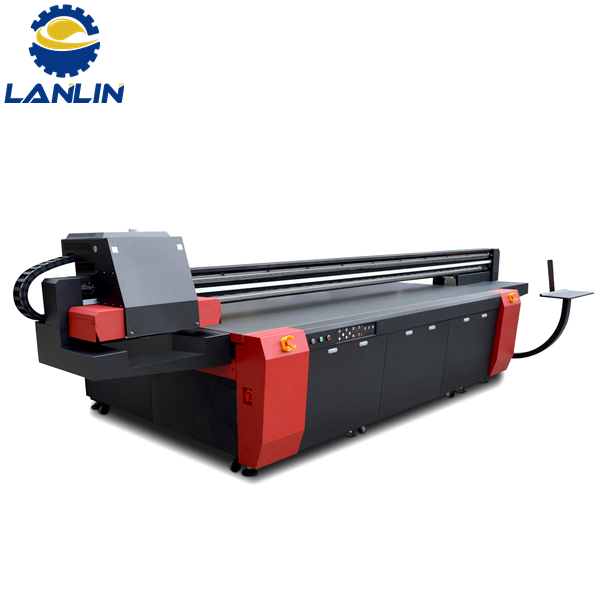

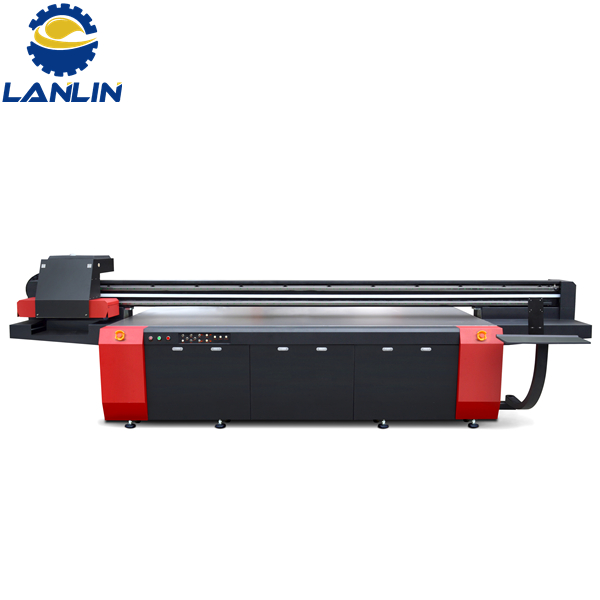

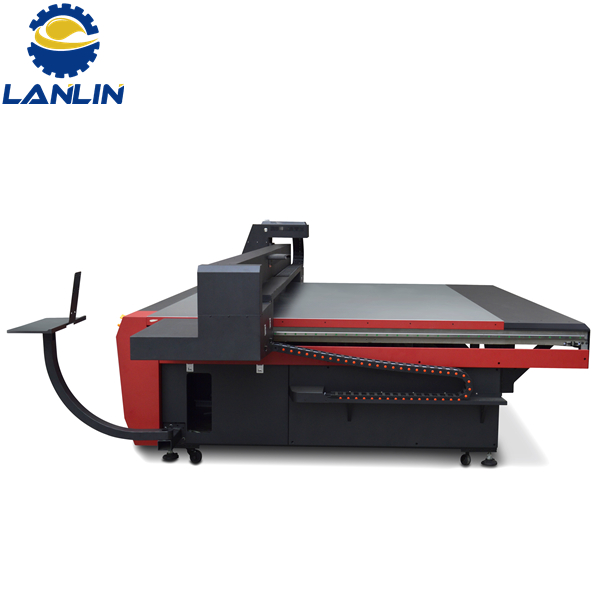

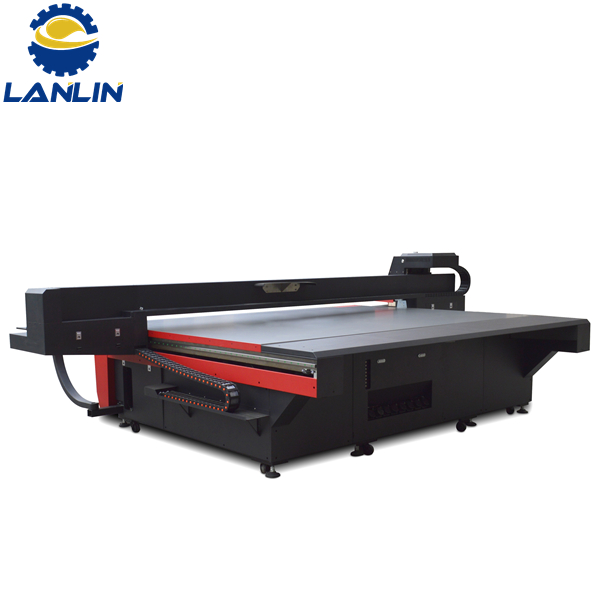

Product detail pictures:

Wholesale Price China Pneumatic Second Hand Printing Machine -
 LL-3220GS-16H High speed industrial uv printing machine – Lanlin Printech detail pictures

Wholesale Price China Pneumatic Second Hand Printing Machine -
 LL-3220GS-16H High speed industrial uv printing machine – Lanlin Printech detail pictures

Wholesale Price China Pneumatic Second Hand Printing Machine -
 LL-3220GS-16H High speed industrial uv printing machine – Lanlin Printech detail pictures

Wholesale Price China Pneumatic Second Hand Printing Machine -
 LL-3220GS-16H High speed industrial uv printing machine – Lanlin Printech detail pictures

Wholesale Price China Pneumatic Second Hand Printing Machine -
 LL-3220GS-16H High speed industrial uv printing machine – Lanlin Printech detail pictures
