Specifications:
Assembly speed: 200±10% pieces per minute;
Operators: 1;
Parts: cap and top ;
Compressed air: 0.5~0.7Mpa ;
Voltage: 380V, 50 hz, 3 phase; Power: 2KW;
Master machine dimension: 1100*1100*1800mm;
Vibrator, loader, linear for top: 1900*950*1600mm;
Unscrambler, loader, linear for cap: 1900*950*1600mm;
Layout: 3500*4200*2150mm;

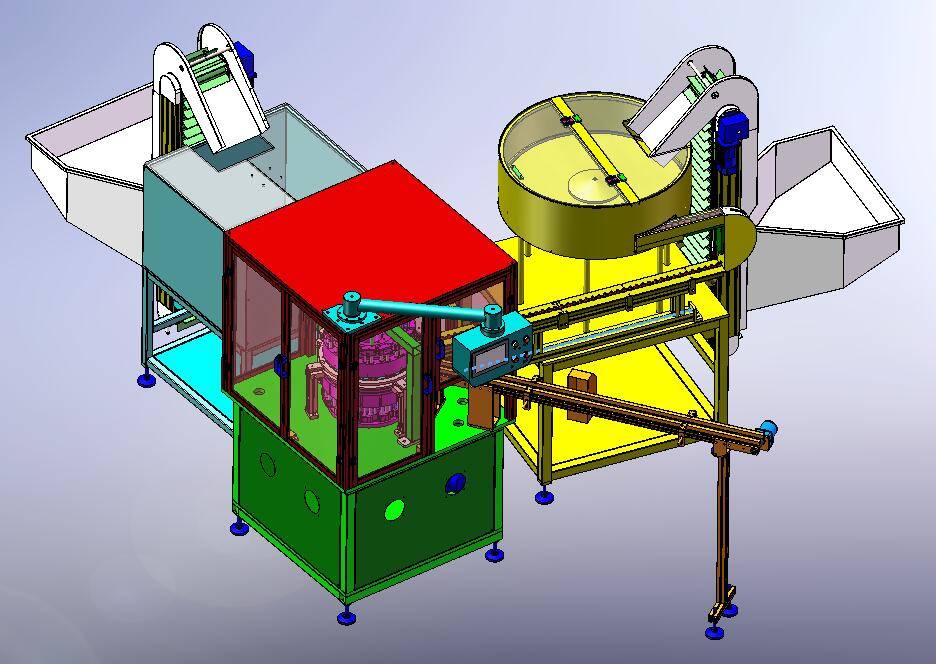

Structure of the machine
1) Elevator, unscrambler and linear for cap;
2) Elevator, vibrator and linear for top;
3) Assembly machine;
4) Finished product output conveyor;
5) Electronic control parts;
1、The host is equipped with frequency converter, linkage with owed, full material downtime, incoming power function; the components of the feeder and other auxiliary equipment has a matching host automatic switch function；
2、Manual host running, to complete a single jog, semi-automatic control;
3、Automatic linkage operation, the production line host speed can be flexibly adjusted on the touch screen, in order to adjust the operator to obtain the highest efficiency;
4、Human-computer interaction function: the way the host and auxiliary machine in accordance with the layout of the layout placed on the page, the screen can be timely monitoring of the main and auxiliary work status and counting function;
6）PLC and touch screen printing： ● PLC：SIEMENS/PANASONIC/MITSUBISHI ●touch screen display: Omron;
7）Invertor：Panasonic
8）Safety and protection： ●Electrical lines have good relay protection, ground protection； ●Overload, short circuit, overvoltage;
9）Motor：The feeding speed of each component can be adjusted manually；
10）Sensor； Sick;
11）Electrical parts: The machine uses man-machine interface control system, user-friendly operation, display panel selection Omron touchpad, sensitive operation, fast response.
