Applications:

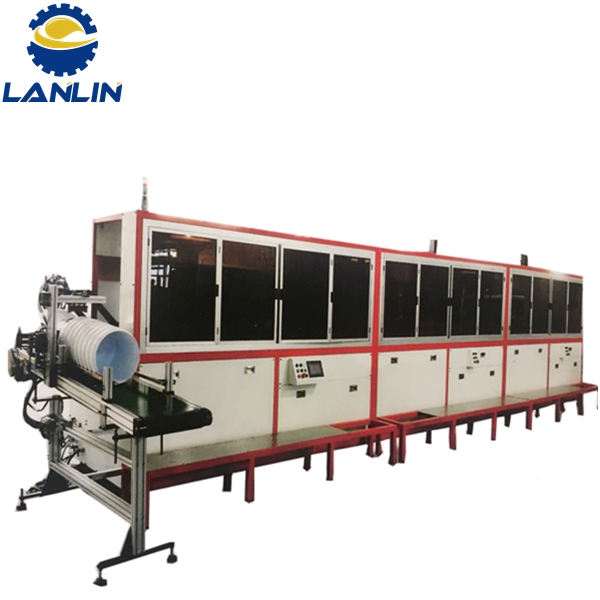

Specially designed for screen printing on large and round plastic containers, mainly use in chemical industry,food industry and more; 767XL Screen Train adopt friendly user interface system to ensure easy adjustment and operation,also equipped with mechanical feeder, flaming unit,registration system, no parts no print function UV curing system and unloading unit.
Specifications:
| Madel | 767XL-1 color | 767XL-2 colors | 767XL-3 colors | 767XL-4 colors |
|
Max Print size(mm) |
250×950 | 250×950 | 250×950 | 250×950 |
| Output(pcs/min) | 18-25 | 18-25 | 18-25 | 18-25 |
| Air Pressure(bar) | 5-7 | 5-7 | 5-7 | 5-7 |
| Weight(kg) | 3000 | 4500 | 6000 | 7500 |
| Dimensions(mm) | L5000*W3820*H2000 | L7900*W3820*H2000 | L10800*W3820*H2000 | L13800*W3802*H2000 |
| Power | AC380V 50/60Hz 8kw |
AC380V 50/60Hz 6kw |
AC380V 50/60Hz 24kw | AC380V 50/60Hz 32kw |
