Applications:
Pad printer is widely applied in many industries including toys, plastic, electronic, glass, metal, electrical appliances, ceramics, die-casting products, optical, sporting goods, stationery, etc.
For example, rulers, pens, golf balls, ping-pong, eyes of doll, cap of bottle, watches, cameras, ceramic, pharmaceutical and medical equipment, rackets, tapes, electronic components, IC, CPU, DRAM, keyboard, mouse, cell phone shell, decorative signs, etc.
Features:
Microprocessor operation system, electro-pneumatic control, simple operation using touch panel.
125mm-200mm working stroke, ink cup and ink basin design.
Programmable up and down, forward and rear stroke.

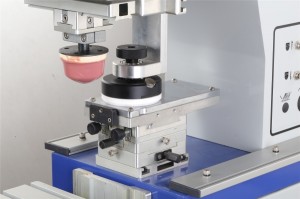

Ink cup base with X, Y, R adjustment, worktable X/Y/Z/R adjustment.
Heavy-duty construction with cabinet.
Stable, durable working and fine workmanship.
Foot pedal operation for single cycle.
Installed safety guard and emergency stop button (optional).
Complying with CE safety standards.
Specifications:
|
Model |
LP-125B-1 |
LP-125C-1 |
LP-150B-1 |
LP-150C-1 |
LP-160B-1 |
LP-160C-1 |
LP-200B-1 |
LP-200C-1 |
|
Ink system |
Ink basin |
Ink cup |
Ink basin |
Ink cup |
Ink basin |
Ink cup |
Ink basin |
Ink cup |
|
Plate size(mm) |
100*100 |
200*100 |
150*100 |
250*100 |
150*100 |
250*100 |
200*100 |
300*100 |
|
Ink cup size(mm) |
○ |
ID82*OD90 |
○ |
ID82*OD90 |
○ |
ID82*OD90 |
○ |
ID82*OD90 |
|
Max. print speed |
2600 Pieces/hour |
2000 Pieces/hour |
1800 Pieces/hour |
1400 Pieces/hour |
||||
|
Driven |
Pneumatic |
Pneumatic |
Pneumatic |
Pneumatic |
||||
|
Air pressure |
5-6 bar |
5-6 bar |
5-6 bar |
5-6 bar |
||||
|
Control system |
12V PCB board |
12V PCB board |
12V PCB board |
12V PCB board |
||||
|
Voltage |
110/220/230V 50/60HZ |
110/220/230V 50/60HZ |
110/220/230V 50/60HZ |
110/220/230V 50/60HZ |
||||
|
Weight(kg) |
70 |
75 |
80 |
82 |
98 |
100 |
150 |
150 |
|
Machine dimension(L*W*H mm) |
680*460*1310 |
680*460*1310 |
780*500*1350 |
780*500*1350 |
810*510*1430 |
810*510*1430 |
1100*580*1450 |
1100*580*1450 |
