LP-F320 Fully Automatic CNC Controlled 3 Color Universal Screen Printing Machine

  • Min.Order Quantity: 1 set
  • Warranty: 1 year
  • Port: Shenzhen
  • Delivery time: 60 days
  • Product Detail

    Product Tags


    This multifunctional rotary multicolor screen printing machine is applied to different print pattern and word on cylindrical product.

    For example, bottles, acrylic jars, containers, cylindrical plastic and glass tube, cap, rubber tube, plywood, lipstick, and flat surface and so on.

    Featuring with easy operation, accurate register, highly automation, fast in printing and low maintenance.

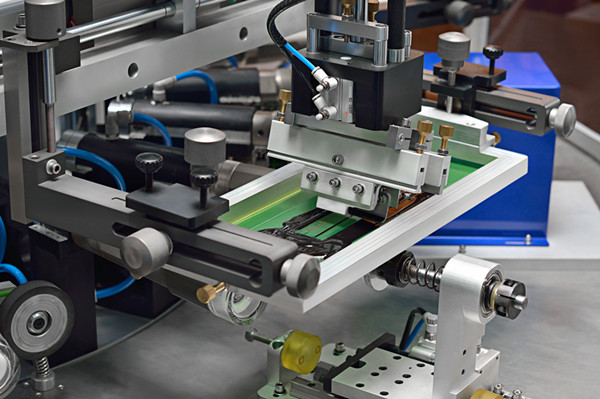

    Tubes 1

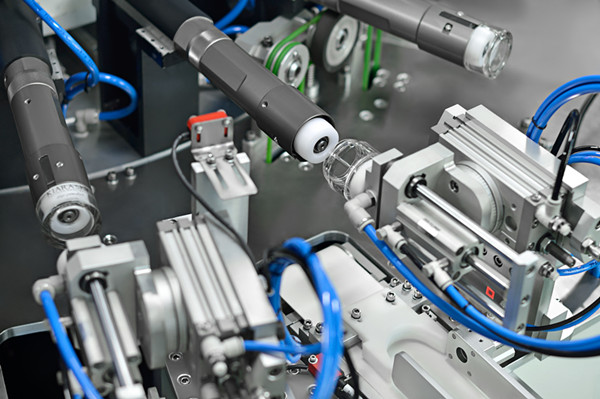

    tubes 2


    1. Equipped with functions, such as:

    Vertical or horizontal infeed and outfeed of article,


    Antistatic dust device,

    Flame pre-treatment,

    Automatic pre- and main register,

    No article no print,

    Conventional America UV or LED UV curing system, hot air drying, etc.

    2. Optional integration of different processing i.e. hot stamping unit, labeling, heat transfer, and varnishing.

    3. All main components are from Taiwan, France, German, USA and Japan to ensure the machine quality and stability of printing.


    Printing speed 2500-3600 Pieces/hour(depending on article shape, size and print image, infinitely adjustable)
    Printing size Φ20-90mm, Height 25-220mm
    Compressed air pressure 6-8 Bar
    Machine dimension L 2200*W 3000*H 2400mm
    Power AC 380V, 3-Phase, 50Hz/60Hz, 25Kw(conventional UV), 10Kw(LED UV)
