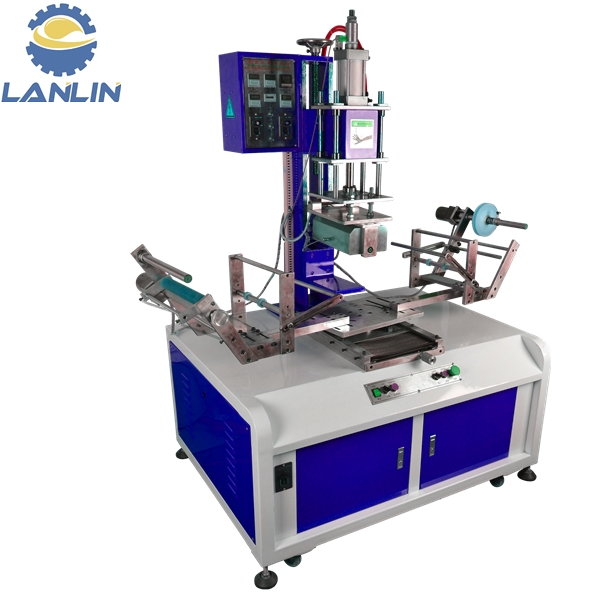

LP-300DRC heat transfer machine for conical part

  • Min.Order Quantity: 1 set
  • Warranty: 1 year
  • Port: Shenzhen
  • Product Detail

    Product Tags

    LP-300DRC heat transfer machine for conical part

    Application:

    Exclusively used in heat transfer printing for conical cup, conical bucket, sand bucket and other conical products.

    Feature:

    1. Equipped with PLC programmable controller text in computer, can be displayed on operation screen. With digital setting, it has high sensitivity. With key-type panel, it is simple and convenient;

    2. With gearbox motor driving heat transfer, clearance is small and fan-shape swing stable, Controlled by photoelectronic sensor, the machine has high accuracy;

    3. With straight elbow lifting air cylinder, it has fast speed; With oil tank, the machine operates more steady.

    4. Workbench can be adjusted back and frond, which is convenient for fast operation;

    5. Pressure, temperature and time for transfer printing are adjustable;

    6. Positioning transfer printing film with electric eye can load and wind paper automatically and is adjustable;

    7. Driven by motor, machine is more suitable to transfer printing for precision product;

    8. Height of hot stamping head is adjustable; Heating tube is featured by wrap-around heat conduction, so that hot stamping heat keeps uniform temperature;

    Specification:

    Stamping diameter for round part: 150mm
    Conicity: ≤ 5 degree
    Maximum height of part: 200mm
    Stamping speed: 600 pieces per hour
    Stamping temperature range: 300 ℃
    Stamping pressure range: ≤300kgf
    Air consumption: ≤80 Litre/min
    Power: 110V/220V, 50/60HZ, 2KW
    Dimension: 1400*1800*1800mm
    Weight: 300kg

    Details:

    Heat stamping head

    Heat transfer parts

    Samples:

    Heat transfer for conical part
