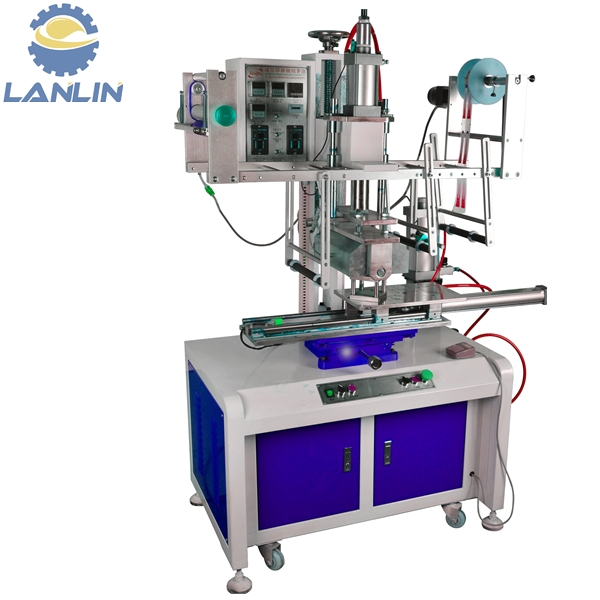

LP-250MC heat transfer machine for flat and round part

  • Min.Order Quantity: 1 set
  • Warranty: 1 year
  • Port: Shenzhen
  • Product Detail

    Product Tags

    LL-250MC Heat Transfer Machine for Flat and Round Part

    Application:

    Applicable to flat and round part heat transfer printing for plastic, hardware, electronic product, toy, stationery and wood.

    Feature:

    1. Equipped with PLC programmable controller text in computer, can be displayed on operation screen. With digital setting, it has high sensitivity. With key-type panel, it is simple and convenient;

    2. With straight elbow lifting air cylinder, it has fast speed; Controlled by photoelectronic sensor, the machine has high accuracy;

    3. With air cylinder shutting left and right through horizontal push, it is steady and has big pushing force. Workbench can be adjusted back/front and left/right, which is convenient for fast operation;

    4. Pressure, temperature and time for transfer printing are adjustable;

    5. Positioning transfer printing film with electric eye can load and wind paper automatically and is adjustable;

    6. With tension motor imported from Taiwan and magnetic powder brake, it is accurate and steady;

    7. The most advanced special transfer printing jig, good and steady transfer printing result;

    8. Height of hot stamping head is adjustable; Heating tube is featured by wrap-around heat conduction, so that hot stamping heat keeps uniform temperature;

    9. Lifting guide post of machine is enlarged to increase pressure and keep uniform pressure. 5 Film guide arms get thick, so as to realize excellent balance;

    Specification:

    Stamping diameter for round part: 150mm
    Printing area for flat part: 250*400mm
    Stroke of cylinder: 400mm
    Maximum height of part: 200mm
    Stamping speed: 1000 pieces per hour
    Stamping temperature range: 320 ℃
    Stamping pressure range: ≤300kgf
    Air consumption: ≤80 Litre/min
    Power: 110V/220V, 50/60HZ, 2KW
    Dimension: 1300*900*1900mm
    Weight: 250kg

    Details:

    Round part heat transfer machine_副本

    Conical jig base

    Round jig

    Heat stamping head

    Heat transfer parts

    Samples:

    heat transfer for flat toys

    Heat transfer for flat wooden toys

    Heat transfer samples

    IMG_20190109_112215_副本
