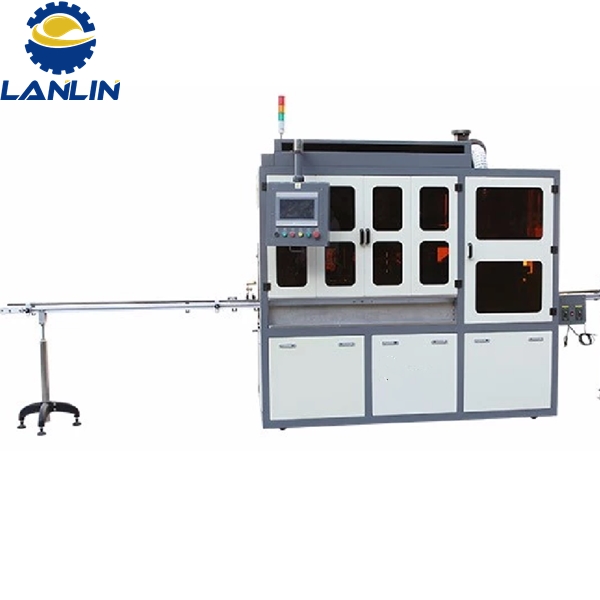

    Auto screen printing machine for all shapes without register hole

    Application:

    All shapes of glass bottles, cups, mugs. It can print any shape of containers all around in 1 print.

    Features:

    Automatic loading system with multi axis servo robot;

    Servo driven transfer system;

    Automatic printing system with all servo driven: printing head, mesh frame, rotation, container up/down all driven by servo motors;

    Multi sides printing in one process;

    LED UV or electric UV system optional;

    Super quick and easy change over from one product to another;

    All parameters automatic setting simply in touch screen. Product change is 15 minutes only per color;

    Automatic unloading with servo robot;

    Safety operation with CE;

    Repeat print to be multi colors;

    Options:

    Additional module up to 10 units, to be multi colors production line.

    Flame Plasma pre-treatment system for best adhesion on glass

    Camera vision system, for cylindrical products without registration point.

    Specifications:

    Printing speed

    Round: 1800-2400 pieces/hour;

    Printing size

    Round: diameter 20-100mm, length:30-180mm;

    Oval: width 20-100mm, length:30-180mm;

    Compressed air pressure

    6-8 bar;

    Fuel gas pressure

    1.5 bar;

    Printing colors

    1-8 colors

    Power

    AC 380V, 3-Phase, 50Hz/60Hz;

    Dimension

    Length: 1800 x1320x2200mm;

     Sample:

    S3A screen printing machine 1
