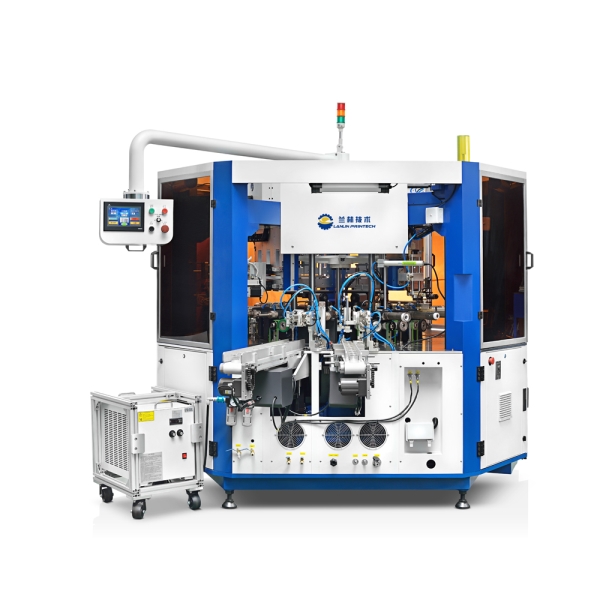

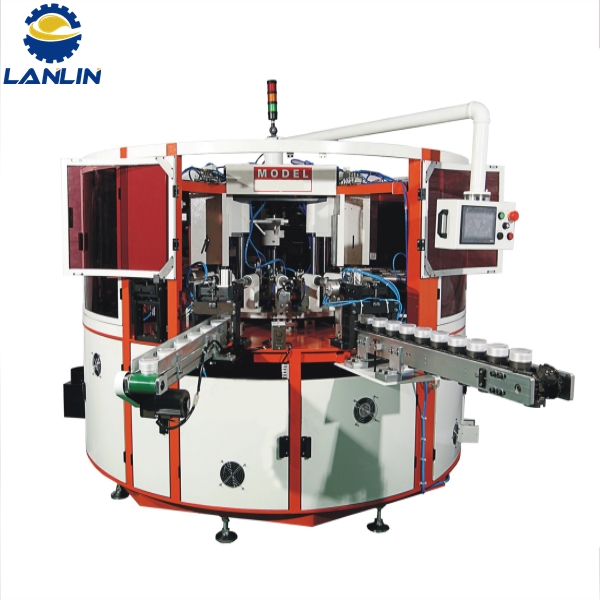

A320 Fully Automatic CNC Controlled 3 Color Universal Screen Printing Machine

  • Min.Order Quantity: 1 set
  • Supply Ability: 10 per Month
  • Port: Shenzhen
  • Payment Terms: T/T, L/C, Western Union
  • Delivery time: 60 days
  • Product Detail

    Product Tags

    A320 Fully Automatic CNC Controlled 3 Color Universal Screen Printing Machine

    Applications:

    This multifunctional rotary multicolor screen printing machine is applied to different print pattern and word on cylindrical product.

    For example, bottles, acrylic jars, containers, cylindrical plastic and glass tube, cap, rubber tube, plywood, lipstick, and flat surface and so on.

    Featuring with easy operation, accurate register, highly automation, fast in printing and low maintenance.

    Tubes 1

    tubes 2

    Features:

    1. Equipped with functions, such as:

    Vertical or horizontal infeed and outfeed of article,

    Orientation,

    Antistatic dust device,

    Flame pre-treatment,

    Automatic pre- and main register,

    No article no print,

    Conventional America UV or LED UV curing system, hot air drying, etc.

    2. Optional integration of different processing i.e. hot stamping unit, labeling, heat transfer, and varnishing.

    3. All main components are from Taiwan, France, German, USA and Japan to ensure the machine quality and stability of printing.

    Parameters:

    Printing speed: 2500-3600 Pieces/hour

    (depending on article shape, size and print image, infinitely adjustable)

    Printing size: Φ10-80mm, Height 20-200mm

    Compressed air pressure: 6-8 Bar

    Machine dimension: L 5000*W 2600*H 2350mm

    Power: AC 380V, 3-Phase, 50Hz/60Hz, 17Kw(conventional UV), 5Kw(LED UV)
