A107 Fully Automatic Chain-Type Multicolor Screen Printing Machine

  • Min.Order Quantity: 1 set
  • Supply Ability: 10 per Month
  • Port: Shenzhen
  • Payment Terms: T/T, L/C, Western Union
  • Delivery time: 30 days
  • Product Detail

    Product Tags

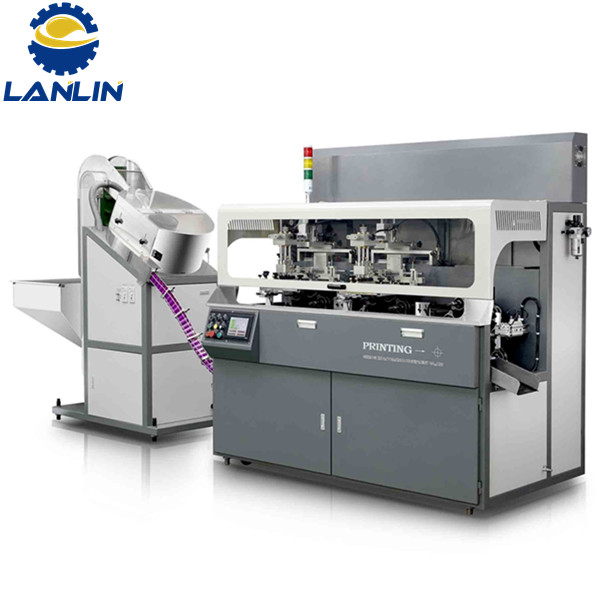

    A107 Fully Automatic Chain-Type Multicolor Screen Printing Machine

    Applications:

    Fully automatic chain-type multicolor screen printing machine are mainly used for cylinder printing without positioning point,achieve multicolor printing.

    The printing objects can be made of plastic, metal or glass etc. Such as bottle lid, lipstick, pen sleeves, tubes, perfume bottles.

    SX-107 样品_副本

    3 color hot stamping caps_副本

    Features:

    1. It adopts chain style structure, all stations and parts are driven synchronously. Maximum 3 colors can be printed. Optional integration of different processing i.e. screen printing, hot stamping.

    2. Controlled by PLC and touch screen display, with kinds of monitor system to ensure the machine running stable and safe at high speed.

    3. Equipped with unscrambler, automatic infeed and outfeed product, automatic register.

    Parameters:

    Printing speed: 3000 Pieces/hour

    Printing size Cap diameter:  Φ15-34mm, length 25-60mm

    Bottle dia Φ20-65 mm, length 25-150 mm

    Compressed air pressure:6-8 Bar

    LPG: 1.5 Bar

    Dimension: L 2250*W 1360*H 2280mm

    Power: AC 380V, 3-Phase, 50Hz/60Hz
